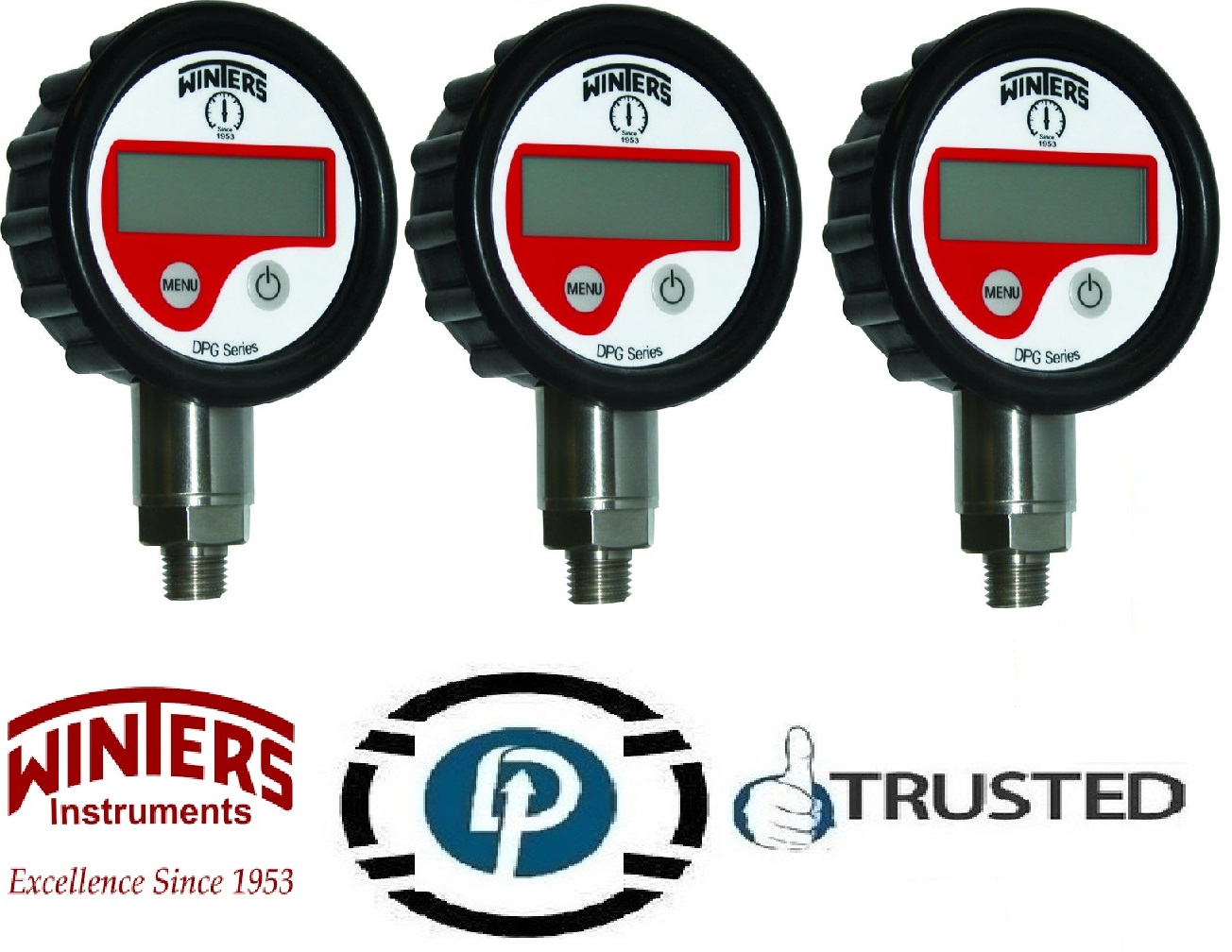

Winters Digital Pressure Gauge Model No DPG231R11 From Kusumgram Bardhaman (West Bengal) India
The DPG Digital Pressure Gauge is ideal For commercial and industrial applications in Both Test Measurement And General Purpose Installations. Continuous Peak Pressure Indication Option With Simple Two Button Operation. Backlight Turns On When On/Off Button Is Pressed.
- Manufacturer : Winters Instruments
- MODEL : DPG 231
- RANGE : 0-60 BAR
- DIAL SIZE : 2.5 INCH
- Connection : 1/4″ NPT 304 SS
- Accuracy : ±0.5%
- Parcel Dimensions : 12.2 x 10.5 x 5.6 cm; 264 g
- Country of Origin : INDIA
APPLICATIONS:
Ideal for commercial and industrial applications in both test measurement and general purpose installations
DESCRIPTION & FEATURES:
- Simple 2 Button Operation
- Reset to Zero Feature
- Backlight Turns On When On/Off Button is Pressed
- Option for Display to Remain Continuously On
- Continuous Peak Pressure Indication Option
- 316L Welded Diaphragm Seal
- Rubber Boot is Standard
- ASME B40.100 Compliant
- RoHS Compliant
- +/- 1% accuracy (+-/ 0.5% optional for gauges up to 5,000 psi)
- 1 year warranty
SPECIFICATIONS
| Case Size |
2.5″ (63mm) |
| Case Material |
ABS |
| Rubber Boot |
Silicone Rubber |
| LCD Display |
2″ x 3/4″ (48mm x 16mm) |
| Connection |
1/4″ NPT 304SS |
| Sensor |
316L welded, Piezo |
| Operation Life |
1 million cycles |
| Power Supply |
2 x AAA battery (1.5V) |
| Battery Life |
2yrs (auto shut-off mode) |
| Power Mode |
Auto or manual shut-off |
| Display Digits |
4 digits to 5,000 psi
5 digits for 10,000 psi and 15,000 psi
|
| Pressure Unit Selection |
psi, mH2O, mmHg, mbar, kPa ranges ≤ 100 psi
psi, bar, kgf/cm2, MPa, atm ranges ≥ 160 psi
|
| Response Time |
≤ 3 Hz display refresh rate |
| Proof / Burst Pressure |
200% / 300% FS |
| Operating / Storage Temperature |
Operating: 14°F to 122°F (-10°C to 50°C)
Storage: -4°F to 167°F (-20°C to 75°C)
|
| Accuracy |
±1% (±0.5% optional for gauges up to 10,000 psi) |
| Enclosure Rating |
IP60 |
ALL MODEL
| Model |
Range |
Dial Size |
Connection |
Socket |
| DPG203 |
(-15 to 15) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG204 |
(-15 to 30) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG205 |
(-15 to 60) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG206 |
(-15 to 100) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG207 |
(-15 to 150) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG208 |
(-15 to 200) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG209 |
(-15 to 300) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG210 |
(-15 to 0) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG211 |
(0 to 15) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG212 |
(0 to 30) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG213 |
(0 to 60) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG214 |
(0 to 100) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG215 |
(0 to 160) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG216 |
(0 to 200) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG217 |
(0 to 300) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG218 |
(0 to 600) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG219 |
(0 to 1,000) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG220 |
(0 to 1,500) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG221 |
(0 to 2,000) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG222 |
(0 to 3,000) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG223 |
(0 to 5,000) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG224 |
(0 to 10,000) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
| DPG225 |
(0 to 15,000) PSI |
63 mm / 2.5″ |
1/4″ Bottom |
SS |
