Product Details:
Minimum Order Quantity | 5 Piece |
Model Number/Name | 628-06-GH-P1-E4-S1 |
Measuring Rate | 0-5 psi |
Steel Grade | Stainless Steel |
Automation Grade | Manual |
Material Grade | Stainless Steel |
Condition | New |
Measuring Ranges | 0-5 psi |
Temperatures | 200 |
Minimum Order Quantity | 12 No |
Brand | DWYER USA |
Dwyer 628-06-GH-P1-E4-S1 PRESSURE TRANSMITTER 0-5 PSIG

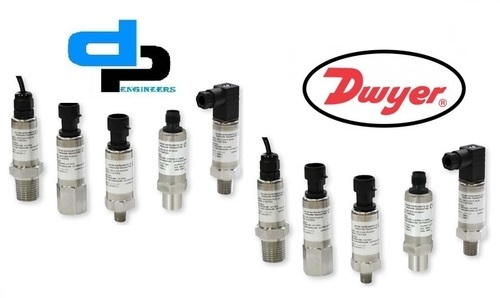

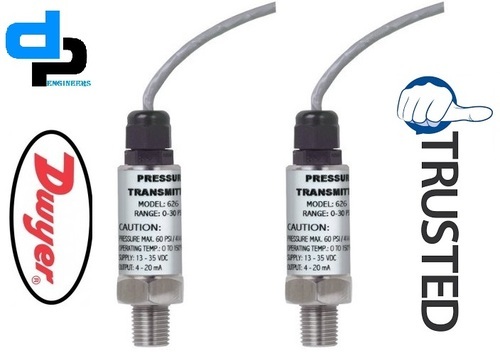

Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for deta
Additional Information:
Minimum Order Quantity | 10 Number |
Model Number/Name | SERIES 626 & 628 |
Measuring Rate | DWYER 628-07-GH-P3-E4-S1 |
Automation Grade | Manual |
Range | 0-15 PSIG |
Condition | New |
Measuring Ranges | 0-15 PSIG |
Usage/Application | Irrigation equipment |
Applications | PTO systems |
Response Time | 300 ms |
Application | Pumping systems |
Brand | Dwyer USA |
Product Weight | 10 oz (283 g) |
Dwyer 628-07-GH-P3-E4-S1 Industrial 316 SS Pressure Transmitter, 0-15 psig
MORE ABOUT THIS ITEM
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for deta
Additional Information:
Minimum Order Quantity | 10 Number |
Model Number/Name | SERIES 626 & 628 |
Measuring Rate | DWYER 628-07-GH-P3-E4-S1 |
Automation Grade | Manual |
Weight | 10 oz (283 g) |
Range | 0-15 PSIG |
Condition | New |
Measuring Ranges | 0-15 PSIG |
Usage/Application | Irrigation equipment |
Applications | PTO systems |
Response Time | 300 ms |
Application | Pumping systems |
Brand | Dwyer USA |
Product Weight | 10 oz (283 g) |
Dwyer 628-07-GH-P3-E1-S1 PRESSURE TRANSMITTER 0-15 PSIG
MORE ABOUT THIS ITEM
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for deta
Additional Information:
Product Details:
Minimum Order Quantity | 10 Number |

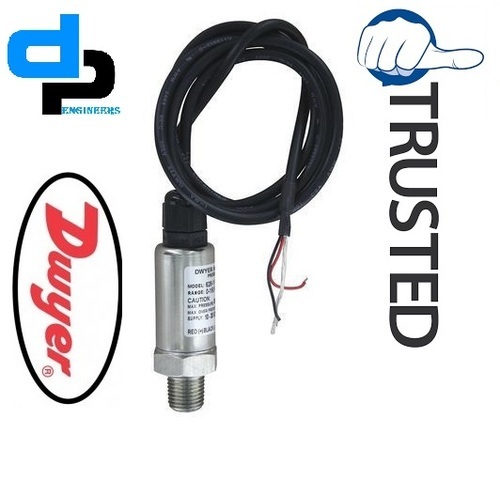

Model Number/Name | 628-13-GH-P1-E7-S1 |
Measuring Rate | 0-300 PSIG |
Automation Grade | Manual |
Weight | 10 oz (283 g) |
Range | 0-300 Psig |
Condition | New |
Measuring Ranges | 0-300 PSIG |
Usage/Application | PTO systems |
Applications | Pumping systems |
Response Time | 300 ms. |
Application | Booster stations |
Brand | DWYER USA |
Net Weight | 10 oz (283 g). |
Product Weight | 10 oz (283 g). |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Additional Information:
Product Details:
Minimum Order Quantity | 10 Number |
Model Number/Name | 628-70-GH-P3-E4-S1 |
Measuring Rate | 0-2 Bar |
Automation Grade | Manual |
Weight | 10 oz (283 g) |
Range | 0-2 Bar |
Condition | New |
Measuring Ranges | 0-2 Bar |
Usage/Application | Irrigation equipment |
Applications | Hydraulic |
Response Time | 300 ms. |
Application | Compressors |
Brand | DWYER USA |
Net Weight | 10 oz (283 g). |
Series | 626 & 628 |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Additional Information:
Product Details:
Minimum Order Quantity | 10 Number |
Model Number/Name | DWYER 628-75-GH-P3-E1-S1 |
Measuring Rate | 0-10 Bar |
Automation Grade | Manual |
Weight | 10 oz (283 g) |
Range | 0-10 Bar |
Condition | New |
Measuring Ranges | 0-10 Bar |
Usage/Application | Irrigation equipment |
Applications | Hydraulic |
Response Time | 300 ms. |
Application | Irrigation System Pressure |
Brand | DWYER USA |
Net Weight | 10 oz (283 g). |
Series | 626 & 628 |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Additional Information:
Product Details:
Minimum Order Quantity | 10 Piece |
Brand | DWYER USA |
Application | Booster stations |
Product Weight | 10 oz (283 g) |
Response Time | 300 ms. |
Usage/Application | PTO systems |
Model Number/Name | Dwyer 628-90-GH-P3-E4-S1 |
Automation Grade | Manual |
Measuring Ranges | 0-16 BAR |
Condition | New |
Measuring Rate | 0-16 BAR |
Net Weight | 10 oz (283 g). |
Applications | Pumping systems |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Additional Information:
Product Details:
Minimum Order Quantity | 10 Number |
Model Number/Name | 628-07-GH-P3-E1-S1 |
Material | 316L stainless steel |
Measuring Rate | 0-15 PSIG |
Automation Grade | Manual |
Condition | New |
Measuring Ranges | 0-15 PSIG |
Usage/Application | Booster stations |
Response Time | 300 ms. |
Application | PTO systems |
Brand | Dwyer USA |
Warranty | yes |
Product Weight | 10 oz (283 g) |
Dwyer 628-07-GH-P3-E4-S1 PRESSURE TRANSMITTER 0-15 PSIG
MORE ABOUT THIS ITEM
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for deta
Additional Information:
Product Details:
Minimum Order Quantity | 10 Number |
Model Number/Name | 628-07-GH-P3-E1-S1 |
Material | 316L stainless steel |
Measuring Rate | 0-15 PSIG |
Automation Grade | Manual |
Condition | New |
Measuring Ranges | 0-15 PSIG |
Usage/Application | Booster stations |
Response Time | 300 ms. |
Application | PTO systems |
Brand | Dwyer USA |
Warranty | yes |
Product Weight | 10 oz (283 g) |
Dwyer 628-07-GH-P3-E4-S1 PRESSURE TRANSMITTER 0-15 PSIG
MORE ABOUT THIS ITEM
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for deta
Additional Information:
Product Details:
Minimum Order Quantity | 10 Number |
Model Number/Name | DWYER 628-75-GH-P3-E4-S1 |
Measuring Rate | 0-10 BAR |
Automation Grade | Manual |
Accuracy | 1.0% FS |
Condition | New |
Measuring Ranges | 0-10 BAR |
Usage/Application | Submersible pump control |
Applications | Irrigation equipment |
Response Time | 300 ms |
Application | Pumping systems |
Brand | DWYER USA |
Net Weight | 10 oz (283 g) |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Additional Information:
Product Details:
Minimum Order Quantity | 10 Number |
Model Number/Name | Dwyer 628-81-GH-P3-E1-S1 |
Measuring Rate | 0-40 Bar |
Automation Grade | Manual |
Accuracy | 1.0% FS |
Condition | New |
Measuring Ranges | 0-40 Bar |
Usage/Application | Submersible pump control |
Applications | Irrigation equipment |
Response Time | 300 ms |
Application | Pumping systems |
Brand | DWYER USA |
Net Weight | 10 oz (283 g) |
Dwyer 628-81-GH-P3-E1-S1 PRESSURE TRANSMITTER 0-40 Bar
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Additional Information:
Product Details:
Minimum Order Quantity | 10 Number |
Model Number/Name | DWYER 628-81-GH-P3-E4-S1 |
Measuring Rate | 0-40 PSIG |
Automation Grade | Manual |
Condition | New |
Usage/Application | Irrigation equipment |
Response Time | 300 ms |
Application | Submersible pump control |
Brand | DWYER USA |
Warranty | Yes |
Product Weight | 10 oz (283 g) |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details
Additional Information:
Product Details:
Minimum Order Quantity | 10 Number |
Model Number/Name | DWYER 628-82-GH-P3-E4-S1 |
Measuring Rate | 0-70 BAR |
Steel Grade | 316L SS. |
Automation Grade | Manual |
Material Grade | Type 316L SS. |
Range | 0-70 BAR |
Condition | New |
Usage/Application | Irrigation equipment |
Response Time | 300 ms. |
Application | Industrial process monitoring |
Brand | DWYER USA |
Product Weight | 10 oz (283 g). |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Additional Information:
Product Details:
Minimum Order Quantity | 5 Number |
Model Number/Name | DWYER 628-87-GH-P3-E1-S1 |
Material | Type 316L SS. |
Measuring Rate | 0-500 BAR |
Steel Grade | Type 316L SS. |
Automation Grade | Manual |
Material Grade | Type 316L SS |
Packing Size | 1 |
Condition | New |
Measuring Ranges | 0-500 BAR |
Process Connection | 1/4 Inch male or female NPT and BSPT. |
Usage/Application | Industrial process monitoring |
Applications | Compressors |
Range Of Product | 0-500 BAR |
Response Time | 300 ms. |
Service | Compatible gases and liquids |
Mounting Orientation | Mount in any position |
Application | Industrial process monitoring |
Brand | DWYER USA |
Net Weight | 10 oz (283 g). |
Product Weight | 10 oz (283 g). |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Additional Information:
Product Details:
Minimum Order Quantity | 5 Number |
Model Number/Name | DWYER 628-91-GH-P3-E4-S1 |
Material | Type 316L SS. |
Measuring Rate | 0-6 BAR |
Automation Grade | Manual |
Material Grade | Type 316L SS. |
Weight | 10 oz (283 g). |
Range | 0-6 BAR |
Condition | New |
Usage/Application | Compatible gases and liquids |
Applications | Industrial process monitoring |
Service | Gases and Liquids. |
Application | Compressors |
Brand | DWYER USA |
Product Weight | 10 oz (283 g). |
Additional Information:
Product Details:
Minimum Order Quantity | 5 Number |
Model Number/Name | DWYER 628-95-GH-P1-E4-S1 |
Material | Type 316L SS. |
Measuring Rate | 0-600 BAR |
Packaging Type | 1 |
Automation Grade | Manual |
Material Grade | Type 316L SS |
Packing Size | 1 |
Weight | 10 oz (283 g). |
Range | 0-600 BAR |
Condition | New |
Measuring Ranges | 0-600 BAR |
Usage/Application | Compatible gases and liquids |
Applications | Compressors |
Connection Available | 1/4 Inch male or female NPT and BSPT. |
Range Of Product | 0-600 BAR |
Service | Gases and Liquids. |
Application | Industrial process monitoring |
Brand | DWYER USA |
Net Weight | 10 oz (283 g). |
Product Weight | 10 oz (283 g). |
Dwyer 628-95-GH-P1-E1-S1 Pressure Transmitter 0-600 Bar
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Product Details:
Minimum Order Quantity | 5 Number |
Automation Grade | Manual |
Measuring Ranges | 0-600 BAR |
Measuring Rate | 0-600 BAR |
Packaging Size | 1 |
Steel Grade | Type 316L SS |
Material Grade | Type 316L SS |
Connection Available | 1/4 Inch male or female NPT and BSPT |
Range Of Product | 0-600 BAR |
Brand | DWYER USA |
Application | Industrial process monitoring |
Product Weight | 10 oz (283 g). |
Usage/Application | Compatible gases and liquids |
Net Weight | 10 oz (283 g). |
Applications | Compressors |
Weight | 10 oz (283 g). |
Condition | New |
Range | 0-600 BAR |
Material | Type 316L SS. |
Model Number/Name | DWYER 628-95-GH-P1-E4-S1 |
Service | Gases and Liquids. |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details
Additional Information:
Product Details:
Minimum Order Quantity | 5 Number |
Model Number/Name | DWYER 628-76-GH-P1-E4-S5 |
Material | Type 316L SS. |
Measuring Rate | 0-12 BAR |
Automation Grade | Manual |
Material Grade | Type 316L SS |
Packing Size | 1 |
Weight | 10 oz (283 g). |
Condition | New |
Measuring Ranges | 0-12 BAR |
Usage/Application | Industrial process monitoring |
Applications | Compatible gases and liquids |
Response Time | 300 ms. |
Service | Gases and Liquids. |
Application | Compressors |
Brand | DWYER USA |
Net Weight | 10 oz (283 g). |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Additional Information:
Product Details:
Minimum Order Quantity | 5 Number |
Model Number/Name | DWYER 174777-00 |
Material | Type 316L SS. |
Measuring Rate | 0-21 Bar |
Packaging Size | 1 |
Automation Grade | Manual |
Material Grade | Type 316L SS. |
Weight | 10 oz (283 g). |
Mounting Type | Type 316L SS. |
Condition | New |
Measuring Ranges | 0-21 Bar |
Process Connection | 1/4 Inch male or female NPT and BSPT. |
Usage/Application | Compatible gases and liquids |
Response Time | 300 ms. |
Application | Compatible gases and liquids |
Brand | DWYER USA |
Packing Type | 1 |
Product Weight | 10 oz (283 g). |
Additional Information:
Product Details:
Minimum Order Quantity | 10 Number |
Model Number/Name | DWYER 174779-00 |
Measuring Rate | 0-400 BAR |
Packaging Size | 1 |
Steel Grade | Type 316L SS. |
Automation Grade | Manual |
Material Grade | Type 316L SS. |
Weight | 10 oz (283 g). |
Range | 0-400 BAR |
Condition | New |
Measuring Ranges | 0-400 BAR |
Usage/Application | Industrial process monitoring |
Range Of Product | 0-400 BAR |
Response Time | 300 ms. |
Application | Compatible gases and liquids |
Brand | DWYER USA |
Net Weight | 10 oz (283 g). |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Additional Information:
Product Details:
Minimum Order Quantity | 5 Number |
Model Number/Name | DWYER 628-83-GH-P3-E4-S1 |
Material | Type 316L SS. |
Automation Grade | Manual |
Material Grade | Type 316L SS. |
Range | 0-100 BAR |
Condition | New |
Usage/Application | Industrial process monitoring |
Applications | Irrigation equipment |
Response Time | 300 ms. |
Service | Gases and Liquids |
Brand | DWYER USA |
Net Weight | 10 oz (283 g). |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Additional Information:
Product Details:
Minimum Order Quantity | 5 Number |
Model Number/Name | WYER 628-85-GH-P3-E1-S1 |
Material | Type 316L SS. |
Packaging Size | 1 |
Steel Grade | 316L SS. |
Automation Grade | Manual |
Material Grade | 316L SS. |
Range | 0-200 BAR |
Condition | New |
Measuring Ranges | 0-200 BAR |
Modle | DWYER 628-85-GH-P3-E1-S1 |
Usage/Application | Pumping systems |
Applications | Irrigation equipment |
Response Time | 300 ms. |
Service | Compatible gases and liquids. |
Application | Irrigation equipment |
Brand | DWYER USA |
Net Weight | 10 oz (283 g). |
Product Weight | 10 oz (283 g). |
Series 626 & 628 Industrial Pressure Transmitter
Complete Offering of Ranges, Connections and Outputs
The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Product Applications
MORE ABOUT THIS ITEM
Ideal for OEM and process applications where ±1% full-scale accuracy is required. Transmitters feature a stainless steel housing and 316 stainless steel oil-filled sensor. The corrosion-resistant 316L stainless steel wetted parts allow these transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals in compressors, irrigation equipment, and process monitoring.
A variety of optional outputs, process connections and electrical terminations are available; contact an Application Specialist for details.
Additional Information:
Product Details:
Brand | Sensocon USA Series 251 |
Additional Information:
Product Details:
Brand | Sensocon USA Series 251 |
Additional Information:
Product Details:
Brand | Sensocon USA Series 251 |
Additional Information:
Product Details:
Brand | Sensocon |
Sensocon USA Wet/Wet Differential Pressure Transmitter Series 251-03
The Series 251 wet/wet differential pressure transmitter utilizes a double diaphragm sensor technology that outperforms standard double sensor products in accuracy, reliability and static operating pressure. This differential pressure sensing technology offers 0.25% accuracy with static operating pressures up to 1000 PSI. The Series 251 features 316 stainless steel construction designed to meet NEMA 4X (IP 65) standards. The transmitter also offers exceptional field flexibility with a 5:1 turn down and comes standard with a certificate of calibration.
Media compatibility:
Gas and Liquids compatible with 316SS
Accuracy:
+/- 0.25% F.S.
Over Pressure:
positive - 2x f.S.; negative-1x F.S.
Working Pressure:
1000 PSI (7MPa)
Temperature Limits:
Operating: -40° to 185°F (-40° to 85°C)
Compensated: -4° to 158°F (-20° to 70°C)
Thermal Effect:
+/- 0.028% FS/°F (0.050%FS/°C)
Stability:
+/- 0.5% FS/year
Power Supply:
12-30 VDC
Output Signal:
4-20 mA, 2-wire
Electrical Connetction:
mini DIN 43650
Response Time:
100 ms
Turn Down:
5:1
Enclosure Rating:
NEMA 4X (IP 65)
Process Connection:
1/4" NPT female, optional 1/4" G
Mounting Position Effect:
0.1% F.S., can be corrected by zero adjust
Model Number Range
251-03 0 - 15 PSI ( 103 kPa )
Product Details:
Brand | Sensocon |
Additional Information:
Product Details:
Brand | Sensocon |
Sensocon USA Wet/Wet Differential Pressure Transmitter Series 251-06
The Series 251 wet/wet differential pressure transmitter utilizes a double diaphragm sensor technology that outperforms standard double sensor products in accuracy, reliability and static operating pressure. This differential pressure sensing technology offers 0.25% accuracy with static operating pressures up to 1000 PSI. The Series 251 features 316 stainless steel construction designed to meet NEMA 4X (IP 65) standards. The transmitter also offers exceptional field flexibility with a 5:1 turn down and comes standard with a certificate of calibration.
Media compatibility:
Gas and Liquids compatible with 316SS
Accuracy:
+/- 0.25% F.S.
Over Pressure:
positive - 2x f.S.; negative-1x F.S.
Working Pressure:
1000 PSI (7MPa)
Temperature Limits:
Operating: -40° to 185°F (-40° to 85°C)
Compensated: -4° to 158°F (-20° to 70°C)
Thermal Effect:
+/- 0.028% FS/°F (0.050%FS/°C)
Stability:
+/- 0.5% FS/year
Power Supply:
12-30 VDC
Output Signal:
4-20 mA, 2-wire
Electrical Connetction:
mini DIN 43650
Response Time:
100 ms
Turn Down:
5:1
Enclosure Rating:
NEMA 4X (IP 65)
Process Connection:
1/4" NPT female, optional 1/4" G
Mounting Position Effect:
0.1% F.S., can be corrected by zero adjust
Model Number Range
251-06 0 - 100 PSI ( 689.5 kPa )
