We are a leading manufacturer, trader, exporter and supplier of high quality Air Cooling System. The offered system is manufactured using the finest quality raw material and the most advanced machinery under the supervision of skilled professionals. In order to deliver flawless range to clients, this system is thoroughly checked on various parameters by our quality examiner. In addition to this, our clients can avail this system from us at market leading prices within stipulated time frame
Â
We are engaged in offering high grade Air Curtain to our precious clients. This product is manufactured using optimum quality components and cutting edge technology. Our offered range is tested on various parameters for ensuring its flawlessness. Further, this product is available in different technical specifications and can be customized as per the precise needs of clients. Clients can avail the offered range at market leading prices.
Features:
Durability
Dimensionally accurate
High strength
Specifications:
Normal Velocity
(7 to 9 m/sec. ) air curtain of this range generally used for internal doors, windows and such spaces where the outside wind velocity is not very high
High Velocity
(10 to 12 m/sec. ) this is the most popular range of velocity for the air curtains required by the customers. This is used for internal as well as external doors
Extra Velocity
(13 to 15 m/sec. ) air curtains in this velocity range are used for external door where outside wind velocity is very high or where it is very important that no dust insects or flies should enter
Special Purpose:
(13 m/sec or above) these air curtains are special purpose type and are made according to specific requirements of valued customers
These are ideally suited for dairies, food processing units or other application where it is extremely important that no outside air should enter the premise
Technical Specifications:
Cabinets Material Used :
Cold Rolled Mild Steel:
16 SWG for base plate
18 SWG for body
20 SWG for grille
Galvanized Iron Sheet:
20 SWG for blower housing.
Interior Finish: anti rust treatment primer paint.
Exterior Finish: power coating
Fan & Motors: the multi blade forward curved centrifugal type al. Fan dynamically balanced is driven by extended motor shaft.
Application:
Air curtain have numerous uses right from cutting down the electricity bills to prevention of entry of unwanted insects, files, hot, humid air etc & popularly used by offices departmental stores, garment manufactures, cold storage, hotel, restaurants, kitchens, bakeries, dairies
Pharmaceutical plants, textile mills, cement plants; and all those industries where surrounding air contains high dust concentrations such as coal and light mines, steel plants, foundries cement plant and other similar industries.
Other Information
With the aid of our well developed infrastructural facility, we are able to offer our clients a wide assortment of Industrial Cooler. The offered cooler is manufactured by utilizing premium grade components in compliance with the industry approved quality standards. Further, it is offered in various sizes and specifications that suit the clients specific requirements. Furthermore, our clients can purchase this range from us at reasonable prices within stipulated time frame. It is tested on well defined parameter in order to deliver defect free range.
Features:
Hassle free performance
Precisely designed
Rust proof
Specifications:
Capacity Available : 2000 to 40000 cfm with single blower & 4000 to 80000 cfm with single & multiple blowers
Base Frame: the total assembly is mounted on a horizontal member of heavy mild steel channel
Fan Section : constructed in GI Sheet with inspection doors
Wet Section : constructed in GI Sheet
Water Tank : constructed in GI /SS
Blower : Dynamically Balaced Forward Curved, Didw Type Make Enviro Tech / Imported
Cellulose Paper Pad : Imported
Electric Motor : Three Phase, tefc squirrel cage induction Motor of Standard Makes (Crompton, ABB and Kirloskar etc
Drive Pulley : V-Groove with/without taper lock hub
V-Belts : Fenner Make
Pump: Monoblock Make Crompton / Kirloskar
Filter: HDPA / Aluminum / GI Mesh Filter, Micro Vee, HEPA as per requirement
Pipe Fittings : PVC / GI Piping with all necessary fittings such as float valve, quick fill, overflow & drain ports
APPLICATION :
Air conditioning
Showroom
Shopping Mal
Restaurant & bar
Hotels
Office
Call Center
Building
Schools
Studio
Institute
Hospital
Pharma company
Clean Room
Other Information
We are devotedly engaged in manufacturing, trading, exporting and supplying a qualitative assortment of PVC Curtain. This curtain is manufactured with utmost precision under the observation of our experienced professionals. In addition, the offered range is tested on various quality parameters to ensure its flawlessness. Owing to its unique features, this curtain is highly appreciated by our clients spread all across the nation.
Features:
Attractive design
Save up to 60% loss
Durable
Effective in preventing dust
Designed for doorways
Cost-effective
Specifications:
We are specialized in manufacturing and supplying a wide range of highly designed PVC Curtains that can save up to 60 per cent loss from cold rooms and food production areas
These products are very effective in restricting dust and birds from warehouse
We use high quality catering grade steel hook on rail and individual curtain strips in quality 2 mm thick PVC which can be cut as per your requirements
Our PVC Curtains are designed for doorways up to 1000 mm wide and 2000 mm high. You can get them at a very reasonable price
Other Information
Our prestigious clients can avail from us an excellent quality array of Dust Free Unit. This unit is manufactured using advance methodologies and equipment as per the set industry standards. Moreover, our quality controllers inspect this range on diverse quality parameters in order to ensure delivery of defect-free product at clients end. Available in various technical specifications, clients can avail this unit at rock bottom prices.
Features:
Ductable
Compact Size
Easy Maintenance
Energy Efficient
Access Door
Economical Operation
Low Noise
Easy Installation
Gasket Sealed Panel
Fresh Air Unit / Dust Free Unit
Unit Capacity:
From 2000 CFM to 50000 CFM or above
Unit Capacity:
In double skin construction the structure is made of hollow aluminum profile with nylon corners and panels are made of 0. 6 mm thickness pre - coated outer sheet and gi inner sheet
The panels are insulated with injected puf (38kg / cubic m. ) / EPS slabs / kini foam
In single skin construction the structure is modular type, made of gi hollow profile and is mechanically bolted with top and bottom tray
Panels are made of 18g. Or 16g. (thickness varies according to the size of unit).
Blower:
The blowers used in unit are imported or indigenous and is centrifugal type forward curved for normal static pressure, mounted on rubber isolators for smooth and quite operation
Sant make blowers are dynamically and statically balanced on fie make computerized balancing machine.
Motor:
The motor used is drip proof mounted on specially designed adjustable motor base. Electrical supply normally is 3 ph / + / -415 volts.
Flat Filter Section:
Filter section channels are designed for 50 mm thick expanded aluminum mesh washable pre filters with easily removable facility.
Applications:
Malls
Offices
Hotels
Auditoriums
Restaurants
Hospitals
Shops
Clubs
Banks
Banquet Halls
Shopping Plazas
Other Information
Leveraging upon our technologically-advanced production facility, we are highly engaged in manufacturing, trading, exporting and supplying Ductable Unit to our respected clients spread all across the nation. The offered unit is extensively appreciated and demanded in market for its salient features such as sturdy construction, perfect finish etc. Further, this unit is checked on different parameters to ensure that we are delivering only flawless product to our clients.
Features:
High-efficiency
Sturdy construction
Hassle free performance
Specifications:
Cooling Coil |
High efficiency sine enviro tech coil cw/dx evaporator type are made with copper tube and aluminum fins mechanically bonded to the tubes |
Blower |
Direct driven heavy duty didw forward curved (dynamically and statically balanced) and for quite operation. |
Motor |
GE/crompton make motor is provided for trouble free performance. |
Range |
Models are available from 1200 cfm to 400 cfm. |
|
|
Casing |
All casing consist of heavy gauge galvanized finish with powder coting. |
Filter |
Washable hdpe air filter is provided with standard units. |
Drain pan |
Evafoam/polystyrene insulated drain pan. |
Service |
Bottom openable. |
Optional |
|
Applications:
Other Information
Features of Air Washer
Other Information
Features of Single Skin Air Washer
Other Information

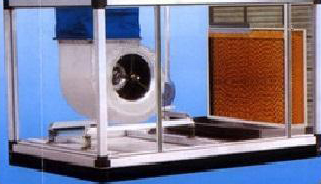

D.P.Engineers Cooling System manufactures state of the art, highly reliable, low maintenance, energy conserving Air Washer/ Air Cooling System in various capacities. The new, innovative designs guarantee predictable performance, long life expectancy and near zero maintenance. These units are available from 3000 CFM to 100000 CFM, plus and can be designed to accommodate optional accessories such as louvers, dampers, eliminators etc.
The Air washers are especially suitable for cleaning extracted air, which has a high affinity to water and must be separated due to the demands of environmental protection. Primarily this air washer is used for cleaning extracted air containing pure chromium, and enables the return of the primarily separated aerosoles back to the process. A further field of application for this air washer is the increase in the usage duration of the collecting main liquid, due to the primary separation of the impurities.
Construction:-
The air washer´s mist separator is constructed equipped with a quick locking mechanism. The continuously fed double spray nozzles are positioned on lances, which are flanged onto the casing. This makes maintenance or an inspection in the shortest time possible. The removal direction of the mist separator units, depending on the air direction being left, right or upwards is adapted to the local conditions accordingly.
Other Information
CAPACITY RANGE :- 1000 – 150000 CFM
Features of these products:
Other Information
Features
Unit Capacity
From 2000 cfm to 50000 cfm or above
Casing
In Double skin construction the structure is made of hollow aluminum profile with nylon corners and panels are made of 0.6 mm thickness pre - coated outer sheet and GI inner sheet. The panels are insulated with injected PUF (38kg / cubic m.) / EPS slabs / Kini Foam. in Single skin construction the structure is modular type, made of GI hollow profile and are mechanically bolted with Top and Bottom Tray. panels are made of 18g. Or 16g. (Thickness varies according to the size of unit).
Blower
The Blowers used in Unit are imported or indigenous and is centrifugal type Forward Curved for normal static pressure, Mounted on Rubber Isolators for smooth and quite operation. Sant make Blowers are Dynamically and Statically balanced on FIE make computerized Balancing machine.
Motor
The motor used is Drip proof mounted on specially designed adjustable motor base. Electrical supply normally is 3 ph / + / -415 volts.
Flat Filter Section
Filter section channels are designed for 50 mm thick Expanded Aluminum Mesh washable Pre Filters with easily removable facility.Application in Ventilation System
Fresh Air Units
Features
Unit Capacity
From 2000 cfm to 50000 cfm or above
Casing
In Double skin construction the structure is made of hollow aluminum profile with nylon corners and panels are made of 0.6 mm thickness pre - coated outer sheet and GI inner sheet. The panels are insulated with injected PUF (38kg / cubic m.) / EPS slabs / Kini Foam. in Single skin construction the structure is modular type, made of GI hollow profile and are mechanically bolted with Top and Bottom Tray. panels are made of 18g. Or 16g. (Thickness varies according to the size of unit).
Blower
The Blowers used in Unit are imported or indigenous and is centrifugal type Forward Curved for normal static pressure, Mounted on Rubber Isolators for smooth and quite operation. Sant make Blowers are Dynamically and Statically balanced on FIE make computerized Balancing machine.
Motor
The motor used is Drip proof mounted on specially designed adjustable motor base. Electrical supply normally is 3 ph / + / -415 volts.
Flat Filter Section
Filter section channels are designed for 50 mm thick Expanded Aluminum Mesh washable Pre Filters with easily removable facility.
Application in Ventilation System
Other Information

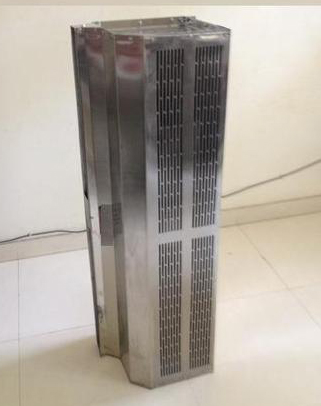

Stainless Steel Air Curtains is a modern device which, when installed on a door, forms an invisible curtain of continuous air and thus prevents escape of conditioned air as well as entry of outside hot, humid and polluted air. Stainless steel air curtain thus not only cuts down your electricity bill, but also helps in maintaining cleanliness and hygiene up to the required standard. So, using a Stainless steel air curtains is not a bad idea.
D.P.Engineers Air Curtains are available in various models ( both horizontal & vertical) and in five different velocities. They are suited for door openings starting from 2.5 Ft. Wide and in velocities ranging from 13 mtr/sec to 25 mtr/sec and above. These velocities are divided into five different model for the convenience of our privileged customers.
Model | Size | Door Size WH (mm) |
RPM | Motor Capacity | Volts | |
ETIP01 | 36" | 900 | 2270 | 1400 | 1/3 HP | 220 V |
39" | 1000 | 2270 | 1400 | 1/3 HP | 220 V | |
42" | 1100 | 2270 | 1400 | 1/3 HP | 220 V | |
48" | 1200 | 2270 | 1400 | 1/3 HP | 220 V | |
60" | 1500 | 2270 | 1400 | 1/3 HP x 2 | 220 V | |
ETIP02 | 36" | 900 | 2400 | 1400 | 1/2 HP | 220 V |
39 | 1000 | 2400 | 1400 | 1/2 HP | 220 V | |
42" | 1100 | 2400 | 1400 | 1/2 HP | 220 V | |
48" | 1200 | 2400 | 1400 | 1/2 HP | 220 V | |
60" | 1500 | 2400 | 1400 | 1/2 HP x 2 | 220 V | |
ETIP03 | 36" | 900 | 2700 | 1400 | 1.0 HP | 440 V |
39" | 1000 | 2700 | 1400 | 1.0 HP | 440 V | |
42" | 1100 | 2700 | 1400 | 1.0 HP | 440 V | |
48" | 1200 | 2700 | 1400 | 1.0 HP | 440 V | |
60" | 1500 | 2700 | 1400 | 1.0 HP x 2 | 440 V | |
ETIP04 | 36" | 900 | 3100 | 1400 | 1.5 HP | 440 V |
39" | 1000 | 3100 | 1400 | 1.5 HP | 440 V | |
42" | 1100 | 3100 | 1400 | 1.5 HP | 440 V | |
48" | 1200 | 3100 | 1400 | 1.5 HP | 440 V | |
60" | 1500 | 3100 | 1400 | 1.5 HP x 2 | 440 V | |
ETIP05 | 36" | 900 | 2000 | 1400 | 1.4 HP | 440 V |
39" | 1000 | 2000 | 1400 | 1.4 HP | 440 V | |
42" | 1100 | 2000 | 1400 | 1.4 HP | 440 V | |
48" | 1200 | 2000 | 1400 | 1.4 HP | 440 V | |
60" | 1500 | 2000 | 1400 | 1.4 HP x 2 | 440 V |
Other Information
Evaporating Cooling Units have found their wide application in modern agriculture, e.g., poultry farms, green houses, mushroom farming and also in central air-cooling systems. These 2 in 1 Humidifier & Purifier (Air Washer) washes and humidify the air at low installation, running, operational and maintenance cost. It is a very cost effective equipment in high heat generation areas, easy to operate, handle, maintain, eco-friendly and best for healthy environment.
Advantages:
Application:
Technical Features:
Frame/Panel | Single Skin - high grade galvanized steel frame/panel duly treated for outdoor duty. Extruded aluminium profile as option for framework. Double Skin - Self-Supporting extruded aluminium profile with PUF injected panels 25 mm thick pre-coated outer sheet/GI inner sheet as standard |
Fan/Motor Deck | DIDW Forward/Backward curve dynamically and statically balanced fans and motor assembled on extruded aluminium profile and mounted on Vibration isolators |
Fill Deck | The wet deck contains specially treated flute media evaporation cooling pad capable of absorbing and retaining water to provide the maximum cooling efficiency. The cellulose media being treated with stiffening and wetting agents provides the cooling without any water carry over. The cross-corrugated media maximize the mixing of air and water. The saturation efficiency ranging from 50% to 90% can be achieved depending upon air velocity and depth of the cooling pad |
Spray Deck (Scrubber) | The wet deck contains double bank spray arrangement with brass nozzles and 4 bend eliminator to remove carbon and oil from exhaust air |
Water Storage | Water storage tank of Galvanized sheet - FRP lined (optional)/SS-304/Aluminium providers connections for water make-up, overflow, drain & recirculation with brass strainer |
Air Filter | Air filter section designed and properly framed, containing washable air filters of expanded aluminium media |
Finish | Powder coated /Prepainted finish unit provided for outdoor installation |
Optional | Double Bank Filter Section Single / Double Bank Spray Chambers Micro V Filters Section Eliminator Section Grease Filter/Dry Scrubber Unit |
Other Information
With DIDW Forward Curved Centrifugal Fans
Capacity upto 15000 cfm
Available in Both Single/Double Skin Panels with Al. Extruded Sections
Ideal for Fresh Air Supply & Exhaust Application
Other Information
Catering to the varying expectations of our esteemed clients, we are offering SS Air Curtains which are manufactured by our diligent professionals implementing sophisticated technologies. These curtains are fabricated using stainless steel which assure reliability for a longer service life free from damages. As far as its applications are concerned, these curtains are used to stop the escape of conditioned air of the room. In order to maintain the cooling of the area, they prevent the hot air of outside to enter. They also assists to maintain the cleanliness and hygiene of the areas along with maintaining cooling.
We supply these SS Air Curtains in Baddi, Nalagarh, Solan, Ludhiana, Jalandhar, Amritsar, Mohali, Zirakpur, Chandigarh, Parwanoo and other region of Punjab, Haryana and Himachal.
Other Information
We are among the distinguished manufacturers, suppliers and exporters of Ductable Unit Floor Mounted in the industry. The offered units are made available by us in several specifications to meet the diverse requirements of the customers. These units are designed by domain experts and are widely demanded by malls, offices, institutes and suchlike establishments.
Specifications:
Capacity Range:
Applications:
Features:
Options available:
Other Information
Manufactures High Quality Single Skin Air Washers as per coustomer requirement under the brand name D.P.Engineers.
Features of
Other Information
